ISO9001 Standard 8Hz Vertical Geophone , Geophysical Geophone String

Brand Name : EGL

Model Number : Single Geophone 8Hz Vertical

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 8Hz±5%

Geophone Case : Vertical Waterproof Land Case

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Connector Type : KCK Male connector

Price : Negotiable

Contact Now

Seismic Geophone 8Hz Vertical with KCK Male connector (408 connector)

Type	Single Geophone 8Hz
Geophone Direction	Vertical Direction / Horizontal Direction
Geophone Type	8Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

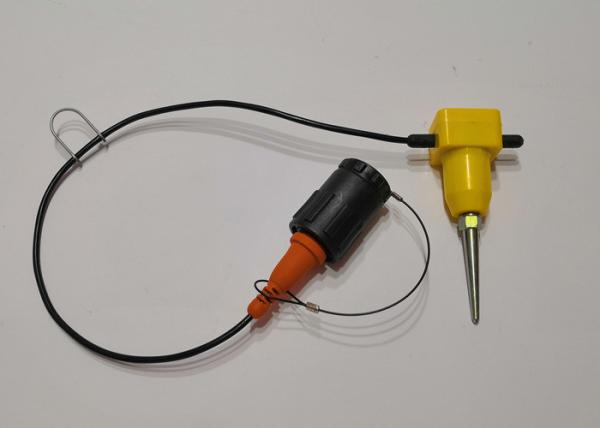

Single geophone 8Hz Vertical in land case with spike 75mm, with 1m leader cable,with one D-Loop , terminated with KCK Male connector (408 connector) .

ISO9001 Standard 8Hz Vertical Geophone , Geophysical Geophone String

Type	EG-8-II
Natural Frequency ( Hz )	8 Hz ± 5%
Coil resistance(Ω)	375Ω ± 5%
Open Circuit Damping	0.337 ± 5%
Damping With Shunt Resistor	0.6 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s )	28.8 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s )	24.9 v/m/s ± 5%
Damping Calibration-Shunt Resistance(Ω)	2400Ω
Harmonic distortion ( % )	＜0.2%
Typical Spurious Frequency (Hz )	≧240Hz
Moving Mass ( g )	11.3g
Typical case to coil motion p-p ( mm )	2mm
Allowable Tilt	≦20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	32mm
Diameter ( mm )	25.4mm
Weight ( g )	74g
Warranty Period	3 years

All parameters specified here in are rated at a temperature 20℃±2℃ .
