Low Frequency Vertical Geophone , 2D And 3D Geophone Low Distortion

Brand Name : EGL

Model Number : Single Geophone 5Hz Vertical

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 5Hz±7.5%

Geophone Case : Vertical Waterproof Land Case

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Connector Type : without connector

Price : Negotiable

Contact Now

Seismic Geophone 5Hz Vertical with 1m leader cable without connector

The geophone 5 Hz is used to receive the weak deep and low frequency signal. This kind of geophone has following characters: Low frequency, Low distortion and high sensitivity.

It’s suitable for field single point data acquisition.

Main Feather:

Lower Frequency: 5Hz

Higher Sensitivity: 80V/m/s

Lower distortion: ≤0.1%

Type	Single Geophone 5Hz
Geophone Direction	Vertical Direction / Horizontal Direction
Geophone Type	5Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

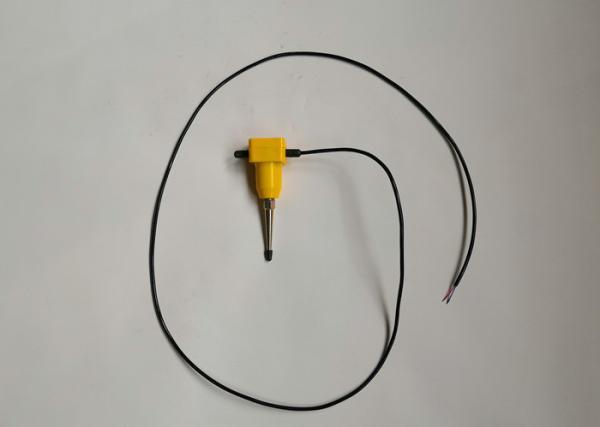

Single geophone 5Hz Vertical in land case with spike 75mm, with 1m leader cable, terminated without connector .

Low Frequency Vertical Geophone , 2D And 3D Geophone Low Distortion

Type	EG-5-HS
Nature Frequency Hz	5Hz±7.5%
Typical spurious frequency (Hz)	≥130Hz
Distortion	≤0.1%
Opening Circuit Damping	0.6±7.5%
Open circuit resistance(ohm)	1850±5%
Opening Circuit Intrinsic Voltage Sensitivity	80±5% V/m/s
Moving Mass g	22.8g
Max. Coil excursion p.p (mm)	3mm
Diameter	32mm
Height	44mm
Weight	166g
Operating Temperature Range	-40℃～+80℃
Limited Warranty Period	1 year

Product Tags:

vertical seismic geophone

vertical seismic sensor

Low Frequency Vertical Geophone , 2D And 3D Geophone Low Distortion Images
