Deep Seismic Prospecting Geo Phone 60 Hz Geophone Sensor

Brand Name : EGL

Model Number : Geophone 60Hz Vertical

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Price : Negotiable

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 60 Hz Geophone Sensor

Usage : Deep Seismic Prospecting

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Other Name : Geo Phone

Contact Now

Deep Seismic Prospecting Geo Phone 60 Hz Geophone Sensor

Geo Phone for deep seismic prospecting, natural earthquake surveillance and prediction, pulse and microseismic measurement for bridge and highways, etc.

Type	Deep Seismic Prospecting Geo Phone 60 Hz Geophone Sensor
Geophone Direction	Vertical Direction / Horizontal Direction
Geophone Type	60Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

Deep Seismic Prospecting Geo Phone 60 Hz Geophone Sensor

Type	EG-60-II
Natural Frequency ( Hz )	60Hz ± 5%
Coil resistance(Ω)	1450 ± 5%
Open Circuit Damping	0.49 ±5%
Damping With Shunt Resistor	0.573 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s )	48.0 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s )	34.0 v/m/s ± 5%
Damping Calibration-Shunt Resistance (Ω)	3600Ω
Harmonic distortion ( % )	＜0.2%
Typical Spurious Frequency (Hz )	≧300Hz
Moving Mass ( g )	7.3g
Typical case to coil motion p-p ( mm )	1.2mm
Allowable Tilt	≦20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	32mm
Diameter ( mm )	26mm
Weight ( g )	80g
Warranty Period	3 years

Product Tags:

Seismic Prospecting Geo Phone

Geo Phone 60 Hz

60 Hz Geophone Sensor

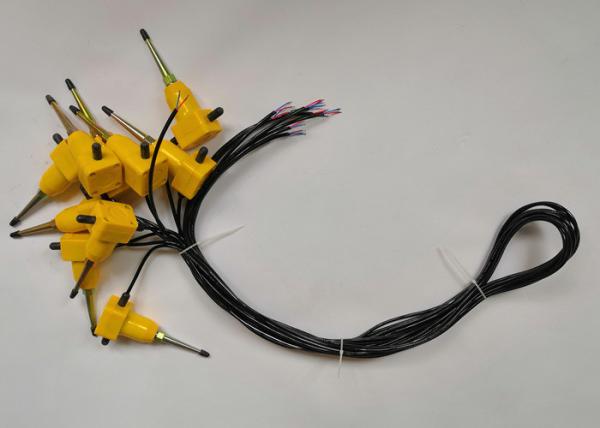

Deep Seismic Prospecting Geo Phone 60 Hz Geophone Sensor Images
