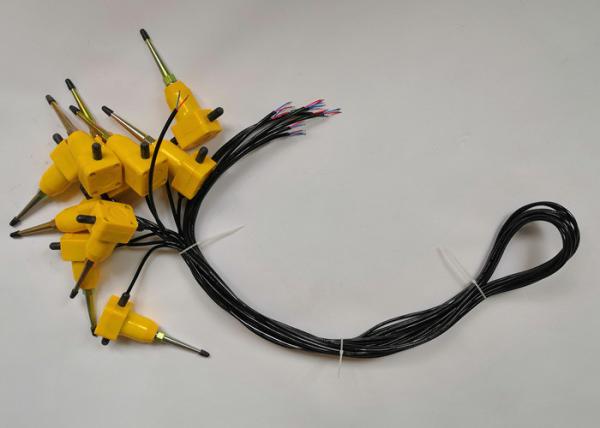

60Hz Vertical Geophone High Sensitivity With KCK Connector

Product Categories

EGL Equipment services Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : EGL

Model Number : Geophone 60Hz Vertical

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Price : Negotiable

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Name : Vertical Geophone

Natural Frequency : 60Hz±5%

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Feature : High Sensitivity

Contact Now

60Hz Vertical Geophone High Sensitivity With KCK Connector

Type	60Hz Vertical Geophone
Geophone Direction	Vertical Direction
Geophone Type	60Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

Single geophone 60Hz Vertical in land case with spike 75mm, with 1m leader cable,terminated with KCK Male connector (408 connector).

60Hz Vertical Geophone High Sensitivity With KCK Connector

Type	EG-60-II
Natural Frequency ( Hz )	60Hz ± 5%
Coil resistance(Ω)	1450 ± 5%
Open Circuit Damping	0.49 ±5%
Damping With Shunt Resistor	0.573 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s )	48.0 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s )	34.0 v/m/s ± 5%
Damping Calibration-Shunt Resistance (Ω)	3600Ω
Harmonic distortion ( % )	＜0.2%
Typical Spurious Frequency (Hz )	≧300Hz
Moving Mass ( g )	7.3g
Typical case to coil motion p-p ( mm )	1.2mm
Allowable Tilt	≦20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	32mm
Diameter ( mm )	26mm
Weight ( g )	80g
Warranty Period	3 years
