Spike 75mm 60Hz Vertical Geophone For Defense Engineering

Brand Name : EGL

Model Number : Geophone 60Hz Vertical

Certification : ISO9001

Place of Origin : China

MOQ : 1 sets

Price : Negotiable

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000sets/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency : 60Hz±5%

Name : 60Hz Vertical Geophone

Spike : 75mm

Lead-in Cable : 1 M

Cable O.D : 4.6mm

Application : Defense Engineering

Contact Now

Spike 75mm 60Hz Vertical Geophone For Defense Engineering

Vertical Geophone is a conventional type of moving coil geophone with small error in working parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths.

Type	Spike 75mm 60Hz Vertical Geophone For Defense Engineering
Geophone Direction	Vertical Direction / Horizontal Direction
Geophone Type	60Hz
Geophone Case	Waterproof Land Case
Spike	Steel Spike length75mm
Lead-in	Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available
Connector Type	Mueller Clips Split Spring Clip KCK Connector( Male or Female / Push Fit or Lock Ring Type) Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available

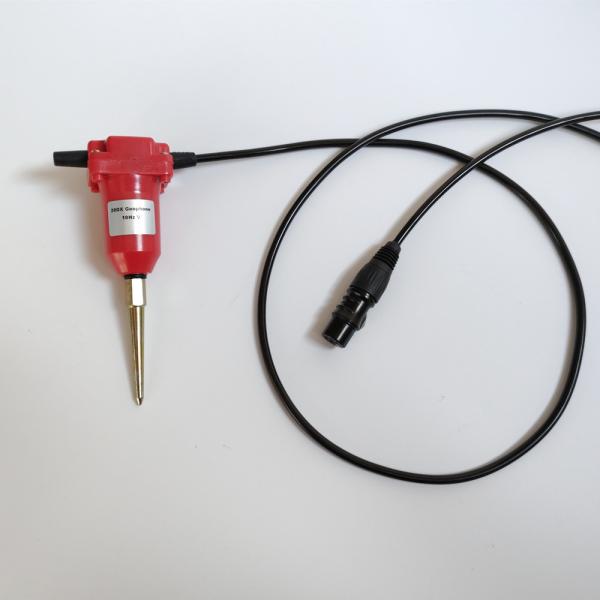

Single geophone 60Hz Vertical in land case with spike 75mm, with 1m leader cable,terminated without connector.

Spike 75mm 60Hz Vertical Geophone For Defense Engineering

Type	EG-60-II
Natural Frequency ( Hz )	60Hz ± 5%
Coil resistance(Ω)	1450 ± 5%
Open Circuit Damping	0.49 ±5%
Damping With Shunt Resistor	0.573 ± 5%
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s )	48.0 v/m/s ± 5%
Sensitivity With Shunt Resistor ( v/m/s )	34.0 v/m/s ± 5%
Damping Calibration-Shunt Resistance (Ω)	3600Ω
Harmonic distortion ( % )	＜0.2%
Typical Spurious Frequency (Hz )	≧300Hz
Moving Mass ( g )	7.3g
Typical case to coil motion p-p ( mm )	1.2mm
Allowable Tilt	≦20º
Operating Temperature Range ( ℃ )	-40℃ TO +100℃
Height ( mm )	32mm
Diameter ( mm )	26mm
Weight ( g )	80g
Warranty Period	3 years
