Vertical Geophone Element High Sensitivity Wide Frequency Response Range

Brand Name : EGL

Model Number : EG-5-HS

Place of Origin : China

MOQ : 1 pcs

Payment Terms : T/T, Western Union

Delivery Time : 5-8 work days

Packaging Details : Carton

Nature Frequency Hz : 5Hz ±7.5%

Sensitivity : 80±5% V/m/s

Distortion : ≤0.1%

Opening Circuit Damping : 0.6±7.5%

Coil resistance : 1850 Ω±5%

Typical spurious frequency (Hz) : ≥130Hz

Price : Negotiable

Contact Now

High Sensitivity Geophone 5Hz,Vertical / Horizontal

High Sensitivity Geophone 5Hz (EG-5-HS) is used to receive the weak deep and low frequency signal. This kind of geophone has following characters: Low frequency, Low distortion and high sensitivity. It’s suitable for field single point data acquisition.

Type	EG-5-HS
Nature Frequency Hz	5Hz ±7.5%
Typical spurious frequency (Hz)	≥130Hz
Distortion	≤0.1%
Opening Circuit Damping	0.6±7.5%
Open circuit resistance(ohm)	1850±5%
Opening Circuit Intrinsic Voltage Sensitivity	80±5% V/m/s
Moving Mass g	22.8g
Max. Coil excursion p.p (mm)	3mm
Diameter	32mm
Height	44mm
Weight	166g
Operating Temperature Range	-40℃～+80℃
Limited Warranty Period	1 year

All parameters specified here in are rated at a temperature 20℃±2℃ .

Vertical Geophone Element High Sensitivity Wide Frequency Response Range

Product Tags:

seismic geophone element

single geophone element

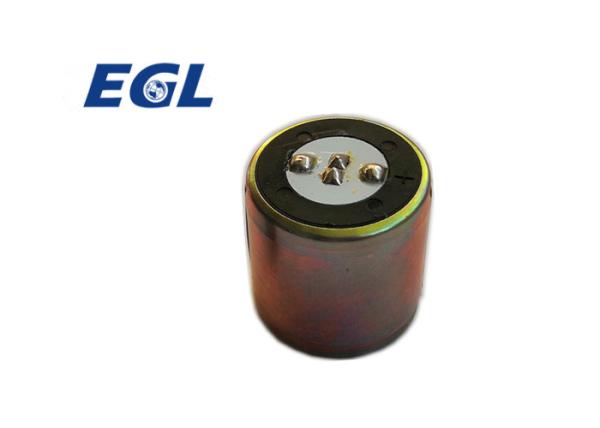

Vertical Geophone Element High Sensitivity Wide Frequency Response Range Images
