60Hz Vertical Seismic Sensor Reliable Performance Strong Structure

Brand Name : EGL

Model Number : EG-60-I

Place of Origin : CHINA

MOQ : 1 pcs

Payment Terms : Western Union, T/T,PayPal

Supply Ability : 10000pcs/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Natural Frequency ( Hz ) : 60Hz ± 5%

Voltage Sensitivity ( v/m/s ) : 35.5 v/m/s ± 5%

Coil resistance : 610 Ω ± 5%

Moving Mass : 6.5g

Harmonic distortion ( % ) : ＜0.2%

Typical Spurious Frequency (Hz ) : ≧450Hz

Price : Negotiable

Contact Now

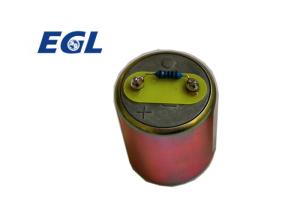

GS 20DX geophone 60hz

The GS 20DX geophone 60hz (EG-60-I) is a conventional double-lead spring geophone with small error in operating parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths.

Type	EG-60-I
Natural frequency ( Hz )	60Hz±5%
Open circuit damping	0.51
Damping with calibration shunt	0.60±5%
Calibration shunt resistance(ohm)	1500 ohm
Open circuit sensitivity (v/m/s)	35.5
Sensitivity with calibration shunt(v/m/s)	27.0±5%
Coil Resistance (ohm)	610 ohm±5%
Harmonic Distortion ( % )	≦0.2
Typical Spurious Frequency ( Hz )	≧450
Moving Mass ( g )	6.5
Max.coil excursion p-p (mm)	1.5
Max.tilt angle	20º
Element Diameter (mm)	27
Element Height (mm)	33
Element Weight (g)	97.5
Operating Temperature(℃)	-40℃ to +80℃

All parameters specified here in are rated at a temperature 20℃±2℃ .
