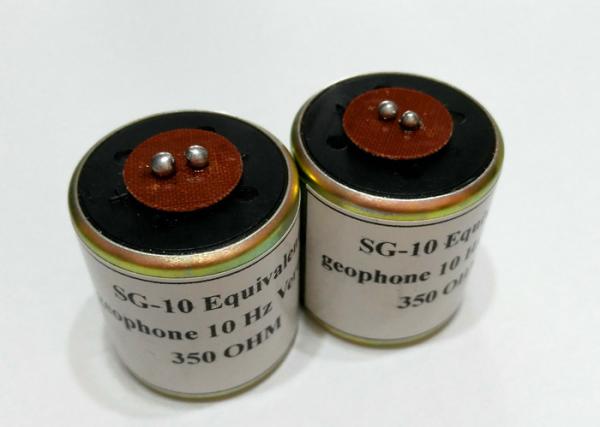

SG10 Geophone Seismic Sensor Land Case Low Distortion

Product Categories

EGL Equipment services Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : EGL

Model Number : SG10

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiable

Payment Terms : Western Union, T/T,PayPal

Supply Ability : 10000pcs/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Name : Geophone Seismic Sensor

Natural Frequency ( Hz ) : 10Hz

Open circuit damping : 0.68±5%

Sensitivity (v/m/s) : 22.8±2.5%

Coil Resistance (ohm) : 350±3.5%

Harmonic Distortion ( % ) : ＜0.075

Typical Spurious Frequency ( Hz ) : ＞240

Element Diameter (mm) : 27.4

Element Weight (g) : 78

Contact Now

10Hz Geophone Seismic Sensor In Land Case Low Distortion

The SG-10 geophoneWidely used in industrial vibration-monitoring systems. Ideal choice for shear-wave horizontal elements.

Type	SG10 Geophone Seismic
Natural frequency ( Hz )	10Hz±2.5%
Open circuit damping	0.68±5%
Sensitivity (v/m/s)	22.8±2.5%
Coil Resistance (ohm)	350±3.5%
Harmonic Distortion ( % )	＜0.075
Typical Spurious Frequency ( Hz )	＞240
Moving Mass ( g )	8.4
Max.coil excursion p-p (mm)	1.78
Max.tilt angle	15º
Element Diameter (mm)	27.4
Element Height (mm)	30.15
Element Weight (g)	78
Operating Temperature(℃)	-40℃ to +100℃

All parameters specified here in are rated at a temperature 20℃±2℃ .

SG10 Geophone Seismic Sensor Land Case Low Distortion
